The following is a guest post by Vitaly Puzrin, the developer behind the icon font service Fontello. I’m also a fan of IcoMoon, a similar service. But I’m also a big fan of competition, sharing thoughts, and open source software, so thanks Vitaly!
My Past
I used to be big into radio-controlled models. I actually run the biggest Russian-speaking community about radio-controlled models. That website still supports me today and frees me up to work on other projects. Today, I develop software with small team, just because I like programming!
My programming days started when I decided to completely rewrite software for RC Design. For many years me (and later me and my team) developed components for IPB and vBulletin forums. Eventually we decided we were spending too much time altering 3rd-party software to what we needed. The most popular forums are commercial, and they are optimized for best sales instead of best quality.
So in our case, spending a couple of years in development is justified1 in the long term for our medium-sized project.
The first Fontello release
While investigating new technologies, I became excited with idea of using web font to show graphics. It is very convenient from a development perspective.
It was strange at first. Why were there so few icon fonts available? Why wasn’t everyone using them? In my opinion, it is because of a process breakdown. The process from idea to use is fairly long and complex:
- Designer designs the icons
- The icons are created in a vector format
- Multiple icons are turned into fonts
- Those fonts are converted into the formats needed for the web
- Special HTML and CSS are needed to have a system to display the icon font glyphs
- Optimizations are needed to make things efficient
- Front end developers need to actually do it
The process can fail at any one of these steps. That becomes especially likely because it involves different people: designers and developers. There can be a gap between these people.
The first Fontello release served to cover this gap by making it easier for everyone. It contained several icon fonts that were already ready to go. You still can find first release in the GitHub archive.
Why use icon fonts?
Just so we’re all on the same page, I’ll summarize the pros/cons of using webfonts to display icons.
Pros
- Fonts are vectors, so there is no pixelation or blurring on high-resolution screens as there would be if the graphic was raster and needed to scale up.
- The browser support is as good as you need it to be
- Once the system is in place, using them is very convenient.
- Arguably easier than spriting images.
- They can be controlled with CSS, like the size, color, shadow, etc.
Cons
- The icons will be single-color. There are some fancy (hacky) techniques for multi-color however, and modern trends and HIGs (human interface guidelines) suggest single colors anyway.
If you need more information about icon fonts and working with them, here are some recommended links:
Next steps
After our first release, Fontello (then called “Fontomas”) got very good reviews. With validation that the project was useful, we had renewed enthusiasm to make it even better. I also decided to use Fontello as a sandbox for testing new technologies I wanted to play with, like websockets, new libraries, and so on.
Around the same time, new professional (and open source) icon fonts appeared: Entypo & FontAwesome. We included them in Fontello straight away.
Font format troubles
For the best cross-browser support, there are four font formats are required for web: woff, ttf, svg & eot. But if you try to find libraries for font generation, you won’t find much help. Especially for ttf.
As far as I can tell, everybody finishes the process using FontForge on the server side. The eot and woff formats are just containers for ttf. There are some open source conversion projects, like one for ttf to eot, and http://code.google.com/p/ttf2eot/ and ttf to woff. These work and we use them.
Hinting
Hinting is a technology to make letters more readable at small sizes. Since the topic is quite complicated, I suggest you look at the wonderful introduction on site of ttfautohint utility.
Fontello can add hinting with ttfautohint. In the past, ttfautohint worked only with text fonts, because it used the letter O to snip base font metrics. But I sponsored support for iconic fonts, so now it can hint those as well.
Is hinting good for iconic fonts? Honestly, that depends… I suggest experimenting with your project and comparing results. Can your font be sharp without hinting? Yes, if it’s pixel-perfect: only displayed in one size, specifically drawn for that size. For example, Entypo font is sharp at 20px, and FontAwesome is sharp at 14px. To see this, go to the Fontello site and drag the size slider around and see how the look of the icons change.
Interface details
I decided to spend some time improving the interface of Fontello.
When you find and icon you like, it’s very convenient to see how that icon combines with text. We do that in Fontello’s second tab, which doubles as the place you change names:
The only correct way to do this is literally display the icon via @font-face. Any other technique (like raphael or) cuffon will never fit right to font metrics. So there was a serious problem:
- We have to store our icon collections in web fonts.
- We can’t do so for custom icons. Rebuilding font for every custom icon on server side is complicated and expensive.
Since the big goal was to improve the interface and do it right, I decided to temporary abandon the importing feature and concentrate on interface usability. Let be honest: very small percent of people really needs custom icons. Maybe that’s not good for the “wow-factor”, but Fontello is not a commercial project, so it can ignore some business rules.

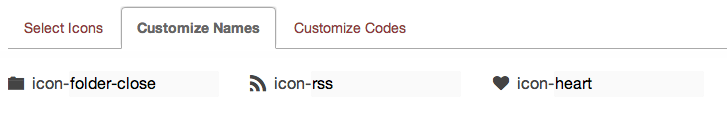

Another usability example is Fontello’s site design. Basically: no design :). Just plain Twitter Bootstrap. Why? Because Fontello is just a development tool. A tool like this should not be beautiful, it should be convenient. Fontello let’s you:
- Search icons
- Quickly preview result
- Change class names for your specific project
That’s all available & accessible.
API for developers
Programmers had some specific requests and ideas for Fontello:
- They keep code for their projects in version control repositories. They want to store their web fonts there too.
- They don’t like to drag files with the mouse.
- They want a simple way to load projects from repos, update them, and move the result back to the repo.
Several months ago we completed an API to make all that possible.
Bye-bye FontForge
FontForge is nice as an editor, but it’s not convenient for automated font processing. It has strange bugs that require specific workarounds.
Ultimately I decided to spend the resources to write font convertors from scratch with Node.js. That was a most complicated adventure. Everyone who had to work with ttf binary format can tell you, it was designed by Aliens for Predators. Anyway, that nightmare is now over, and you can enjoy final result:
Also, we created a nice library for direct SVG paths transformations (scale, translate, absolute <-> relative coords, and size optimization).
Of cause, Fontello is not a completely unique project. The idea to combine/shrink fonts is trivial. But as far as I know, it’s the only one in this area, that has dig into development this deep, and share all the achievements under an open source license.
Here’s some interesting facts not documented anywhere else:
- If
ttffont does not have a “postscript” field in names table, it will not be exportable in Mac’s fontbook. - In
eotformat, font-family must begin with the full name, otherewise IE will not render it.
Thanks to open source development, someone posted this info in our GitHub issue tracker.
Back with custom icons
Since our font convertors were written in Node.js, it was not a big deal to make code work in the browser. Now, Fontello dynamically creates ttf font for imported images on client side, and injects it into page via data-URI.
On the preview, you see the icons exactly as they will be in the generated fonts. In theory, we should use woff format. But as all modern browsers are OK with ttf, and we don’t care much about IE6 support, we use ttf to save some time by not porting to woff first.
How do I request a new feature?
You can request anything you’d like on GitHub. Even crazy stuff! Just ask yourself two questions: 1) Will it be really useful to you? 2) Will it be useful for other people?
Here is one example. Sometime people ask why Fontello does not provide user accounts to store projects on our server. Here’s our thoughts:
- Keeping user data is a big responsibility. To keep quality of service high, that requires investment and that means running Fontello like a business. Since Fontello is positioned as non-commercial project, we don’t want to push it toward being a business.
- Users don’t need accounts, they need good importing and exporting. This can be achieved in better way:
- Every generated font pack already has config file which can be loaded back into Fontello to continue work. Just drag it (or the whole archive) onto the Fontello site. Or use the API, as described above. Easy!
- Use GitHub to store your projects and control changes. That’s much more safe and protects you from mistakes.
Every new feature request is judged in terms of added value. Accounts can be good for making a buisness, but they don’t add noticeable value to Fontello users. Thats a mysterious idea, like placing email/password fields twice on registration form – everybody do so, but nobody can explain why.
The Future
You can look at the complete version history here.
The next big step is search improvement: allow people to update search tags, show related icons, and so on. Some information can be extracted from user actions, like analyzing changed class names.
Also, it would be good to better connect designers and programmers. I feel this area is not still covered as well as it could be. Making a full icon font is a very big job. Many designers have just a few icons they want to share, but… where? Allowing everyone to publish their icons on Fontello would be interesting. That requires a serious interface redesign. So, if you are interface guru and wish to participate, please get in touch!
1 My vision for how big modern forums should be built can be seen in this demo. It is HTML5, Ajax-powered, uses the history API and tons of other sweet technologies.
